Company introduction LANSIN MACHINERY is specialized in design and manufacturing pipe bending machine, pipe cutting machine, pipe end forming machine, pipe chamfering machine, pipe polishing machine and so on. Our company has strong design and development capabilities, has developed the series of CNC pipe bending machine, CNC series of pipe end forming machine, CNC metal circular saw machine, riveting machine, CNC gear grinding machine, such as pipe processing machinery automation. For aviation, heavy engineering machinery, nuclear power, thermal power, wind power yachts shipbuilding, automobile parts, motor vehicle chassis, air conditioning and refrigeration, sports fitness equipment, steel furniture, leisure travel supplies, plumbing sanitary ware, decorative materials and other industries of metal products processing provides a complete, perfect machinery automation equipment. Company can also according to customer demand design, manufacture special specifications of unmanned intelligent automation pipe production line, CNC machinery and equipment and various non-standard automation. Technical Datas | No. | Item | Data |
| 1 | Max Bending Capacity | Φ50.8*2mm |
| 2 | Rang of Bending Radius | 35-200 mm |
| 3 | Max Bend Angle | 190 Deg |
| 4 | Max Length Over Mandrel | 2800 mm |
| 5 | Working Height | 1120 mm |
| 6 | Bending Speed | 112 Deg/S |
| 7 | Bending Precision | +/-0.1 Deg |
| 8 | Feeding Speed | 785 mm/S |
| 9 | Feeding Precision | +/-0.1 mm |
| 10 | Rotate Speed | 375 Deg/S |
| 11 | Rotate Precision | +/-0.1 Deg |
| 12 | Total Power | 13.15 Kw |
| 13 | Machine Size | 4700x1000x1500 mm |
| 14 | Machine Weight | 2800 Kg |
Applications: Exhaust pipe of car, motorcycle, airplane and other machinery. Tubes of air conditioning, furnitures, bikes, light pole, sports facilities Kitchen and bathing facilities, medical equipments. Applied material: carbon steel, stainless steel, aluminum, copper, alloy Applied products: round tube & bar, square tube & bar, rectangle tube & bar, virous profile

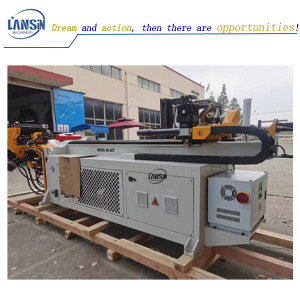

Lansin Machinery Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete
automatic cycle.

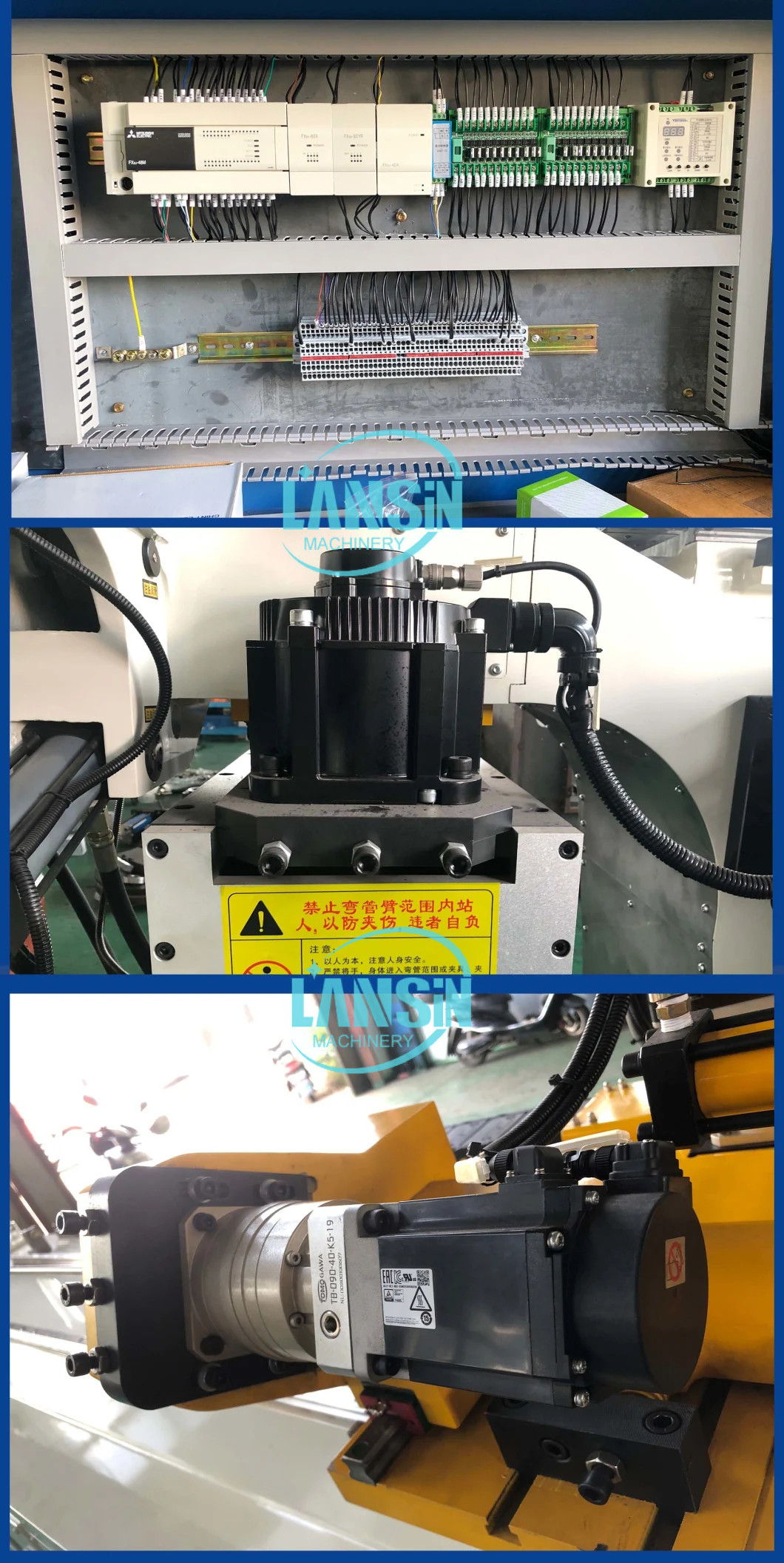

Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MIYSUBISHI,TAIWAN
WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM,SKF AND ETC...
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending
applications.
Features:

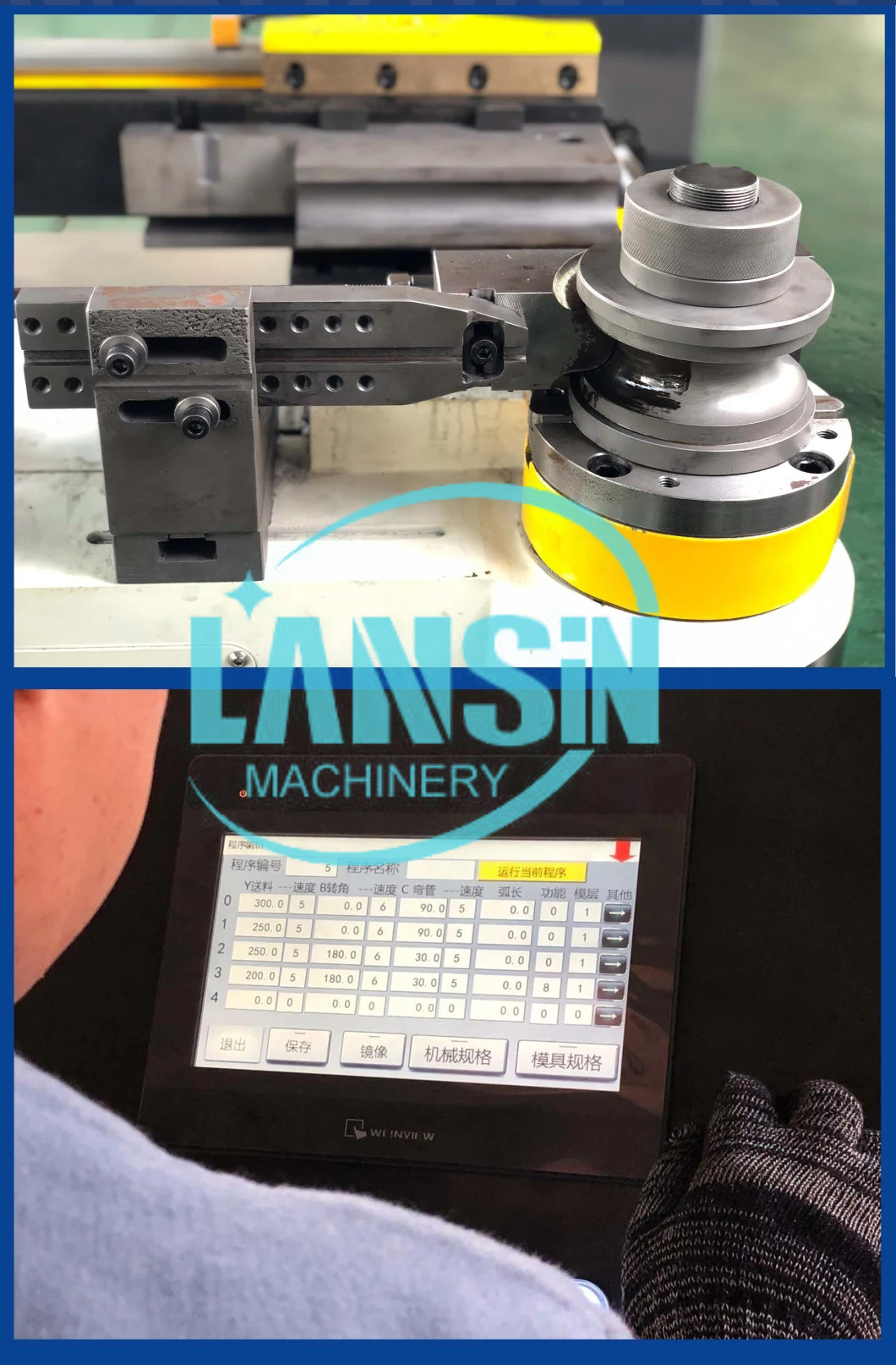

1. Imported PLC control system with program setting and exchange function.
2. With manual, semi-automatic, and automatic operate function
3. With data storage, data counting function.
4. Movable pedal switch with the function of automatic start, emergency stop, high safety operation.
5. With air cooling system, water cooling system for users to choose.
Applications:
1. Exhaust pipe of car, motorcycle, airplane and other machinery.
2. Tubes of air conditioning, furnitures, bikes, outside street light, sports facilities
3. Pipes of kitchen and bathing facilities, pipes of medical equipments.
4. Metal sheets of interior finishing, constructing facilities, outside protective equipments.
