Company introduction LANSIN MACHINERY is specialized in design and manufacturing pipe bending machine, pipe cutting machine, pipe end forming machine, pipe chamfering machine, pipe polishing machine and so on. Our company has strong design and development capabilities, has developed the series of CNC pipe bending machine, CNC series of pipe end forming machine, CNC metal circular saw machine, riveting machine, CNC gear grinding machine, such as pipe processing machinery automation. For aviation, heavy engineering machinery, nuclear power, thermal power, wind power yachts shipbuilding, automobile parts, motor vehicle chassis, air conditioning and refrigeration, sports fitness equipment, steel furniture, leisure travel supplies, plumbing sanitary ware, decorative materials and other industries of metal products processing provides a complete, perfect machinery automation equipment. Company can also according to customer demand design, manufacture special specifications of unmanned intelligent automation pipe production line, CNC machinery and equipment and various non-standard automation. Technical parameter of pipe bending machine | Model | 25CNC | 38CNC | 50CNC | 63CNC | 76CNC | 89CNC | 114CNC | 127CNC | 165CNC | 220CNC |
| Capacity | 25x1.5mm | 38x2mm | 50x3mm | 63x4mm | 76x4mm | 89x6mm | 114x8mm | 127x10mm | 165x14mm | 220x16mm |
| Bending Radius | 1.5D | 1.5D | 1.5D | 1.5D | 1.5D | 1.5D | 1.5D | 1.5D | 1.5D | 1.5D |
| Bending Degree | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 | 0-190 |
| Power | 2.5Kw | 4Kw | 5.5Kw | 7.5Kw | 11Kw | 11Kw | 15Kw | 22Kw | 33Kw | 45Kw |
| Woking Axis | 2A-5A | 2A-5A | 2A-5A | 2A-5A | 2A-5A | 2A-5A | 2A-5A | 2A-5A | 2A-5A | 2A-5A |

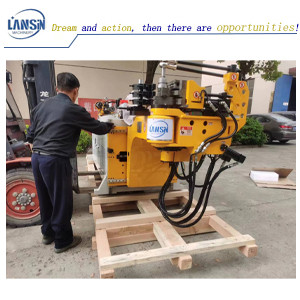

Lansin Machinery Full-automatic pipe bending machine equipped with PLC or IPC which manage Bending (Y), Feeding (X) & Rotation (Z) in a complete
automatic cycle.
Bending (Y-Axis): Controlled by Servomotor or by Hydraulic.
Feeding (X-Axis): Controlled by Servomotor.
Rotating (Z-Axis): Controlled by Servomotor.
We only use popular quality components in the production of our benders from such companies as JAPAN MIYSUBISHI,TAIWAN
WEINVIEW,JAPAN YUKEN,JAPAN NEIMICOM,SKF AND ETC...
This value priced CNC Tube Bending Machine is an excellent choice for general purpose and any type of conventional tube bending
applications.
Features on bicycle tube bending machine
FAQ:
-
Interactive PLC touch screen offers easy access to auto and manual operating modes.
-
System diagnostics and multiple language capability.
-
Fully hydraulic clamping on clamp die and pressure die.
-
Bending Axis-Driven by Cylinder or Servo Motor,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor.
-
Equipped with adjustable speed valve on pressure die ensures the synchronization of bending.
-
Air cooling system or water cooling system ensures the equipment long-time work stably under the high temperature.
-
CE&ISO 9001:2000.
| 1.Q: Are you a manufacturer or trading company? | A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing
machines production. |
| 2.Q:Where is the nearest airport to your company? | A: Wuxi Airport or Shanghai Airport. |
| 3.Q: How to choose the pipe/tube bending machines? | A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- The pipe material
- Bending radius value
- Bends NO. on one pipe - Bending shape in 2 or 3 dimensional
- Other requirements |
| 4. Q: Do you have CE certificate? | A: We have CE certificate. |
| 5. Q:How about your service? | A: Before Sales Serive: 1. We will help our customer confirm the right model according to the offered pipe inforamtion. 2. Welcome to visit our factory to see our machine and our workshop before you place an order. After Sales Service: 1. We provide manual book,detailed machine installation,commissioning video for help you correctly operate machine. 2. We provide free installation,commissioning and training at our factory.If you need engineer go to your factory for machine installation, air tickets,food,hotel, local transportation shoule be at your account. 3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours. |
